Stone and Aggregates
Production
MC Group produce a range of materials from our limestone and sandstone quarries, primarily crushed stone and natural stone. We also produce sand and gravel from our sand and gravel pit.
Materials from our Castleisland and Keim Quarries are produced by a sequence of blasting and various stages of crushing and screening to produce the size and specification desired by our customers.
Materials from our Killarney location are excavated, screened and washed to produce sand, gravel and natural stone products.
Product uses
Our stone and aggregate products have a variety of uses, including:
- Roadways
- Drainage
- Driveways
- Civil engineering
- Surface dressing
- Improvement of soil quality
- House building
- General construction
Product Range
Specified Granular Material
These products have a wide range of required physical and chemical specification requirements depending on the end-use application. The main specifier of these products in Ireland is the Transport Infrastructure Ireland (TII) who set out each materials requirement in their Specification for Road Work Series 500,600 & 800.
Series 500 deals with Drainage and Pipe bedding materials, Series 600 with Earthworks materials and Series 800 with Sub-base materials.
| Clause 801 Unbound Materials for Sub-bases and Road Bases |
| Clause 803 Granular Material Type A |
| Clause 804 Granular Material Type B |
| Clause 805 Granular Material Type C |
| Clause 806 Wet-Mix Macadam Type D |

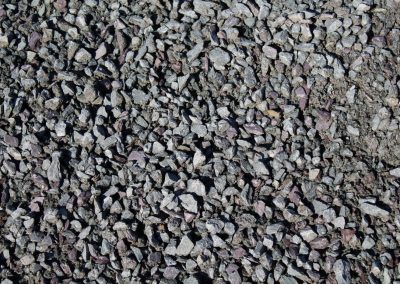

| Down Stone – 3/4inch/2 inch/3 inch/4 inch |
| Washed Stone – 2 inch/3 inch/4-6 inch |
| Class 6 material to T2 Specification |
* photos are for illustration purposes only *
Granular Fill material for use under concrete floors and footpaths is specified under Annex E of S.R. 21, 2016 which lists the physical, chemical and petrographic requirements of the material.
MC Group can provide products conforming with Annex E (SR 21) of IS EN 13242, including:
| T.0 Structural | 5 inch down stone |
| T.1 Structural | Clause 804 |
| T.2 Permeable | 32mm stone |
| T.3 Blinding | Fine dust |
Aggregates
We supply the following aggregates:
| Coarse/fine dust |
| 6mm chip |

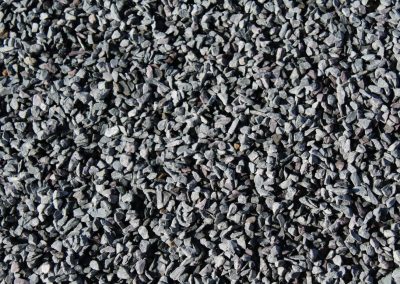

| 10mm stone |
| 20mm stone |
| 30mm stone |

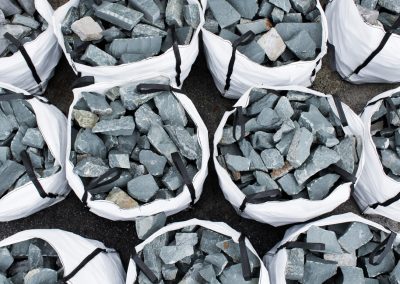

| Building Stone |
* photos are for illustration purposes only *
Granular Fill Material
| Rock Armour |
High PSV Chips
| High PSV 6mm Chip – Council Spec. |
| High PSV 10mm Chip – Council Spec. |

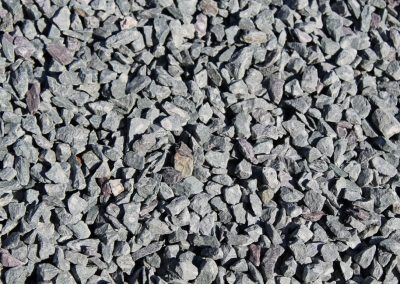

| High PSV 14mm Chip – Council Spec. |
| High PSV 20mm Chip – Council Spec. |
| High PSV 32mm Chip – Council Spec. |
* photos are for illustration purposes only *
Service
MC Group’s locally sourced stone and aggregates boast strength and durability to ensure they are suitable for the civil engineering environment.
Our stone and aggregates are available in a range of sizes to further ensure they suit your individual needs. We can accommodate any size order, thanks to our efficient manufacturing system and can advise on any technical issues you may have.
All orders are delivered to site by our fleet of 30 Tipper trucks.
Quality
MC Group products are regularly inspected by independent auditors (NSAI) to ensure ongoing processes are in compliance with current industry standards and specifications. These include IS EN 13242 (which includes Annex E materials), IS EN 13043 and IS EN 12620.
Certification
Click the images below to view and download our certificates:
EN 13242:2002 + A1 2007
STONE AND AGGREGATES
I.S. EN 12620:2002+ A1:2008
STONE AND AGGREGATES

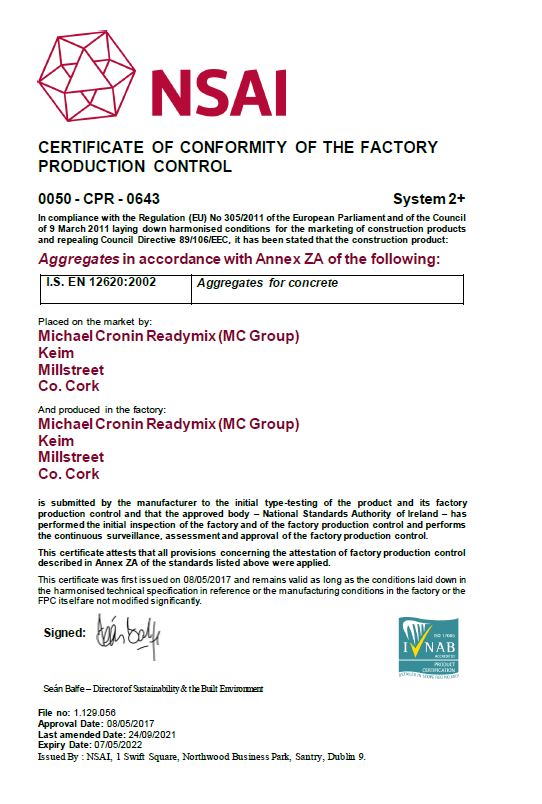

I.S. EN 12620:2002
STONE AND AGGREGATES
IS EN 12620 & SR16
STONE AND AGGREGATES
I.S. EN 12620:2002+ A1:2008
STONE AND AGGREGATES

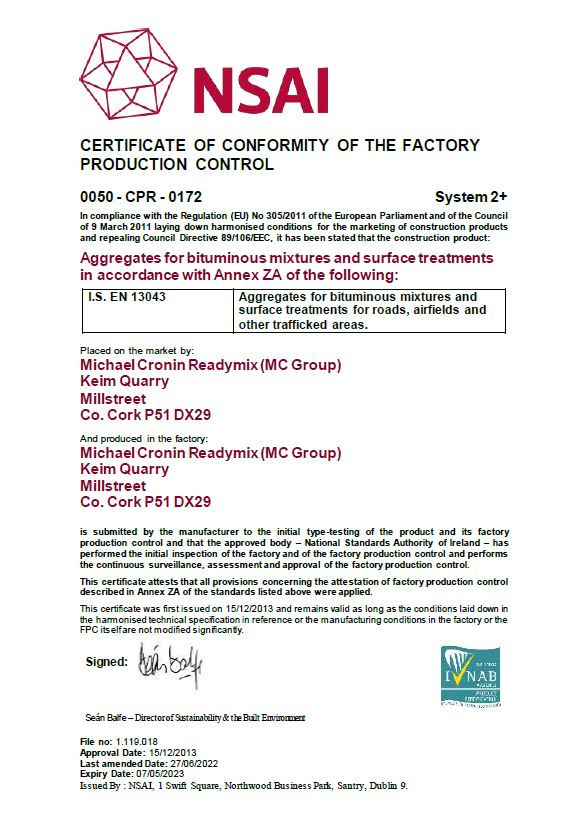

I.S. EN 13043
STONE AND AGGREGATES
I.S. EN 12620 & S.R.16
STONE AND AGGREGATES
IS EN 12620 & SR 16
STONE AND AGGREGATES
